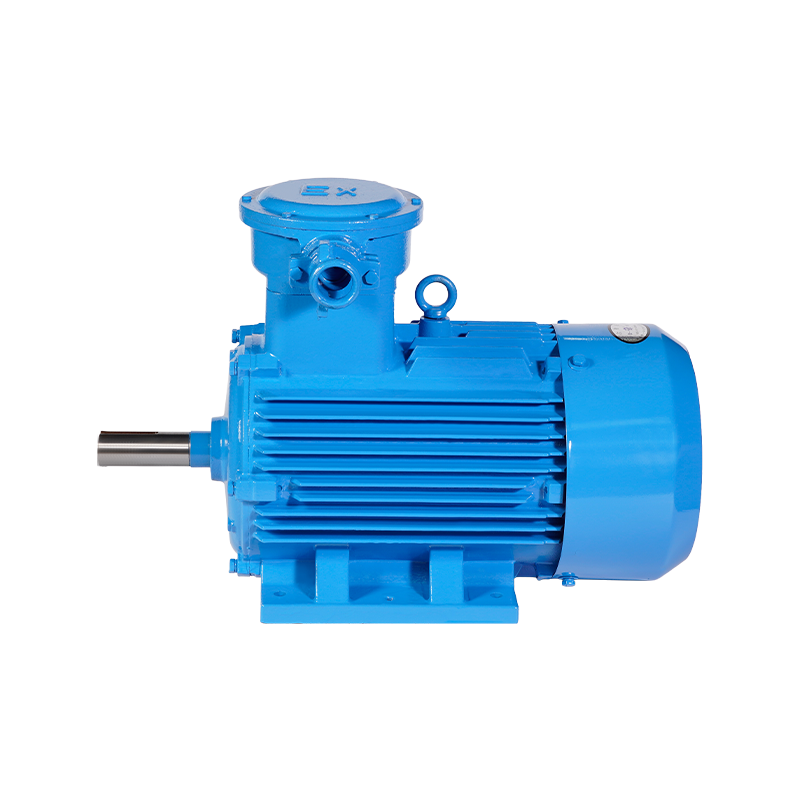

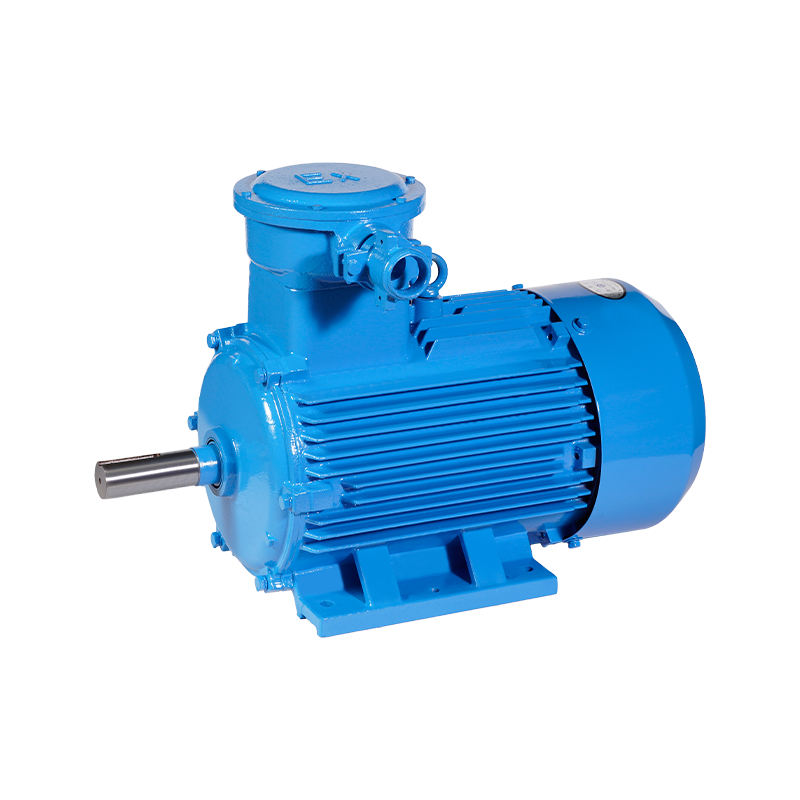

性能特點
1、 效率高，額定效率達到國家1級能效標準；
2、 功率因數高，無需無功補償；
3、 同步性好，無轉差，不掉速，轉速恒定；
4、 噪聲低，振動小，運行更加穩定可靠；
5、 溫升低，比異步隔爆電機溫升可降低10-20K左右；
6、 節能省電，綜合節電率可達8-20%,視負載情況而定；
7、 控制性能優良，動態響應快，轉速控制精準。
使用條件
環境溫度： -15℃~40℃
海拔：不超過1000米
額定電壓：380V、660V、 ?其它電壓可選
額定頻率：50Hz、60Hz、 ?其它頻率可選
工作制：連續工作制 (S1)
防護等級：IP55
絕緣等級： F
冷卻方式： IC411/IC416
接法： Y
規格參數
| 電機型號 | 額定功率kW | 額定電流 | 額定轉矩 | 效率(%) | 功率因數 | 額定轉速 | 額定頻率Hz |
| TBYC-801-2 | 0.75 | 1.3 | 2.4 | 84.9 | 0.95 | 3000 | 100 |
| TBYC-802-2 | 1.1 | 1.9 | 3.5 | 86.7 | 0.95 | 3000 | 100 |
| TBYC-90S-2 | 1.5 | 2.4 | 4.7 | 87.5 | 0.95 | 3000 | 100 |
| TBYC-90L-2 | 2.2 | 3.8 | 7 | 89.1 | 0.95 | 3000 | 100 |
| TBYC-100L-2 | 3 | 5.1 | 9.5 | 89.7 | 0.95 | 3000 | 100 |
| TBYC-112M-2 | 4 | 6.6 | 12.7 | 90.3 | 0.95 | 3000 | 100 |
| TBYC-132S1-2 | 5.5 | 9.2 | 17.5 | 91.5 | 0.95 | 3000 | 100 |
| TBYC-132S2-2 | 7.5 | 10.9 | 23.8 | 92.1 | 0.95 | 3000 | 100 |
| TBYC-160M1-2 | 11 | 19.5 | 35 | 93 | 0.95 | 3000 | 150 |
| TBYC-160M2-2 | 15 | 26.7 | 47.7 | 93.4 | 0.95 | 3000 | 150 |
| TBYC-160L-2 | 18.5 | 32 | 58.9 | 93.8 | 0.95 | 3000 | 200 |
| TBYC-180M-2 | 22 | 37.4 | 70 | 94.4 | 0.95 | 3000 | 200 |
| TBYC-200L1-2 | 30 | 51 | 95.5 | 94.5 | 0.95 | 3000 | 200 |
| TBYC-200L2-2 | 37 | 61.3 | 117.8 | 94.8 | 0.95 | 3000 | 200 |
| TBYC-225M-2 | 45 | 75 | 143.3 | 95.1 | 0.95 | 3000 | 200 |
| TBYC-250M-2 | 55 | 95 | 175 | 95.4 | 0.95 | 3000 | 100 |
| TBYC-280S-2 | 75 | 125 | 238.7 | 95.6 | 0.95 | 3000 | 100 |
| TBYC-280M-2 | 90 | 151 | 286.5 | 95.8 | 0.95 | 3000 | 100 |
| TBYC-315S-2 | 110 | 179 | 350 | 96 | 0.95 | 3000 | 200 |
| TBYC-315M-2 | 132 | 206 | 420 | 96 | 0.95 | 3000 | 200 |
| TBYC-315L1-2 | 160 | 262 | 509 | 96.2 | 0.95 | 3000 | 200 |
| TBYC-315L2-2 | 200 | 330 | 636.7 | 96.3 | 0.95 | 3000 | 150 |
| TBYC-801-4 | 0.55 | 0.96 | 3.5 | 84.5 | 0.95 | 1500 | 50 |
| TBYC-802-4 | 0.75 | 1.3 | 4.7 | 85.6 | 0.95 | 1500 | 50 |
| TBYC-90S-4 | 1.1 | 1.9 | 7 | 87.4 | 0.95 | 1500 | 50 |
| TBYC-90L-4 | 1.5 | 2.6 | 9.5 | 88.1 | 0.95 | 1500 | 50 |
| TBYC-100L1-4 | 2.2 | 3.7 | 14 | 89.7 | 0.95 | 1500 | 50 |
| TBYC-100L2-4 | 3 | 5.1 | 19.1 | 90.3 | 0.95 | 1500 | 50 |
| TBYC-112M-4 | 4 | 6.6 | 25.4 | 90.9 | 0.95 | 1500 | 50 |
| TBYC-132S-4 | 5.5 | 9 | 35 | 92.1 | 0.95 | 1500 | 50 |
| TBYC-132M-4 | 7.5 | 12.2 | 47.7 | 92.6 | 0.95 | 1500 | 50 |
| TBYC-160M-4 | 11 | 18.6 | 70 | 93.6 | 0.95 | 1500 | 50 |
| TBYC-160L-4 | 15 | 23.9 | 95.5 | 94 | 0.95 | 1500 | 50 |
| TBYC-180M-4 | 18.5 | 32 | 117.7 | 94.3 | 0.95 | 1500 | 100 |
| TBYC-180L-4 | 22 | 37 | 140 | 94.7 | 0.95 | 1500 | 100 |
| TBYC-200L-4 | 30 | 50 | 191 | 95 | 0.95 | 1500 | 100 |
| TBYC-225S-4 | 37 | 65 | 235.6 | 95.3 | 0.95 | 1500 | 100 |
| TBYC-225M-4 | 45 | 71 | 286.5 | 95.6 | 0.95 | 1500 | 100 |
| TBYC-250M-4 | 55 | 85.4 | 350 | 95.8 | 0.95 | 1500 | 100 |
| TBYC-280S-4 | 75 | 117 | 477.5 | 96 | 0.95 | 1500 | 100 |
| TBYC-280M-4 | 90 | 152 | 573 | 96.2 | 0.95 | 1500 | 100 |
| TBYC-315S-4 | 110 | 183 | 700 | 96.4 | 0.95 | 1500 | 100 |
| TBYC-315M-4 | 132 | 209 | 840.4 | 96.5 | 0.95 | 1500 | 100 |
| TBYC-315L1-4 | 160 | 260 | 1018.6 | 96.5 | 0.95 | 1500 | 100 |
| TBYC-315L2-4 | 200 | 352 | 1273.3 | 96.6 | 0.95 | 1500 | 100 |
| 電機型號 | 額定功率kW | 額定電流 | 額定轉矩 | 效率(%) | 功率因數 | 額定轉速 | 額定頻率Hz |
| TBYC-802-6 | 0.55 | 1 | 5.2 | 82.4 | 0.95 | 0 | 33.3 |
| TBYC-90S-6 | 0.75 | 1.3 | 7.2 | 86.8 | 0.95 | 1000 | 33.3 |
| TBYC-90L-6 | 1.1 | 1.9 | 10.5 | 88.2 | 0.95 | 1000 | 33.3 |
| TBYC-100L-6 | 1.5 | 2.7 | 14.3 | 89.4 | 0.95 | 1000 | 33.3 |
| TBYC-112M-6 | 2.2 | 3.9 | 21 | 90.5 | 0.95 | 1000 | 66.7 |
| TBYC-132S-6 | 3 | 5 | 28.6 | 91.5 | 0.95 | 1000 | 50 |
| TBYC-132M1-6 | 4 | 6.6 | 38.2 | 92.4 | 0.95 | 1000 | 50 |
| TBYC-132M2-6 | 5.5 | 9.5 | 52.5 | 93.1 | 0.95 | 1000 | 50 |
| TBYC-160M-6 | 7.5 | 12.5 | 71.6 | 93.7 | 0.95 | 1000 | 50 |
| TBYC-160L-6 | 11 | 18.5 | 105 | 94.3 | 0.95 | 1000 | 66.7 |
| TBYC-180L-6 | 15 | 25 | 143.3 | 94.7 | 0.95 | 1000 | 66.7 |
| TBYC-200L1-6 | 18.5 | 32 | 176.7 | 95.1 | 0.95 | 1000 | 66.7 |
| TBYC-200L2-6 | 22 | 36.5 | 210 | 95.4 | 0.95 | 1000 | 66.7 |
| TBYC-225M-6 | 30 | 49 | 286.5 | 95.7 | 0.95 | 1000 | 66.7 |
| TBYC-250M-6 | 37 | 61 | 353.3 | 95.9 | 0.95 | 1000 | 66.7 |
| TBYC-280S-6 | 45 | 71 | 430 | 96 | 0.95 | 0 | 66.7 |
| TBYC-280M-6 | 55 | 86 | 525.3 | 96.1 | 0.95 | 1000 | 66.7 |
| TBYC-315S-6 | 75 | 123 | 716.3 | 96.2 | 0.95 | 1000 | 66.7 |
| TBYC-315M-6 | 90 | 141 | 860 | 96.2 | 0.95 | 1000 | 66.7 |
| TBYC-315L1-6 | 110 | 174 | 1050.5 | 96.3 | 0.95 | 1000 | 66.7 |
| TBYC-315L2-6 | 132 | 210 | 1260.6 | 96.3 | 0.95 | 1000 | 66.7 |
| TBYC-315L3-6 | 160 | 248 | 1528 | 96.3 | 0.95 | 1000 | 66.7 |
| TBYC-315L4-6 | 200 | 320 | 1910 | 96.4 | 0.95 | 1000 | 66.7 |
| TBYC-112M-8 | 1.5 | 2.8 | 19.1 | 90 | 0.95 | 750 | 50 |
| TBYC-132S-8 | 2.2 | 3.8 | 28 | 90 | 0.95 | 750 | 37.5 |
| TBYC-132M-8 | 3 | 5.2 | 38.2 | 91 | 0.95 | 750 | 37.5 |
| TBYC-160M1-8 | 4 | 7.2 | 51 | 91.8 | 0.95 | 750 | 50 |
| TBYC-160M2-8 | 5.5 | 9.9 | 70 | 92.6 | 0.95 | 750 | 50 |
| TBYC-160L-8 | 7.5 | 13.4 | 95.5 | 93.2 | 0.95 | 750 | 50 |
| TBYC-180L-8 | 11 | 19.5 | 140 | 93.7 | 0.95 | 750 | 50 |
| TBYC-200L-8 | 15 | 26.6 | 191 | 94.2 | 0.95 | 750 | 50 |
| TBYC-225S-8 | 18.5 | 32.7 | 235.6 | 94.6 | 0.95 | 750 | 50 |
| TBYC-225M-8 | 22 | 38.3 | 280 | 94.9 | 0.95 | 750 | 50 |
| TBYC-250M-8 | 30 | 52.7 | 382 | 95.1 | 0.95 | 750 | 50 |
| TBYC-280S-8 | 37 | 65 | 471 | 95.3 | 0.95 | 750 | 50 |
| TBYC-280M-8 | 45 | 75.8 | 573 | 95.6 | 0.95 | 750 | 50 |
| TBYC-315S-8 | 55 | 96.2 | 700 | 95.6 | 0.95 | 750 | 50 |
| TBYC-315M-8 | 75 | 122 | 955 | 95.7 | 0.95 | 750 | 50 |
| TBYC-315L1-8 | 90 | 157 | 1146 | 95.7 | 0.95 | 750 | 50 |
| TBYC-315L2-8 | 110 | 185.7 | 1400 | 95.7 | 0.95 | 750 | 50 |
| TBYC-315L3-8 | 132 | 200 | 1680.8 | 95.8 | 0.95 | 750 | 50 |
| TBYC-315L4-8 | 160 | 270 | 2037 | 95.8 | 0.95 | 750 | 50 |
